Mokao Ublox NEO-M8N BN-800 GPS Module Support GPS GLONASS BeiDou For Pixhawk APM is one of the Remote Control Helicopters on Sale in the market. This Most Favourite merchandise presents for you to satisfy your needs.
Here, we provide for you one of Remote Control Helicopters on Sale.

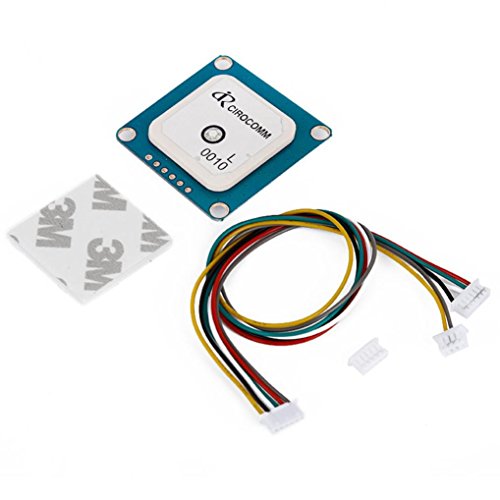

Mokao Ublox NEO-M8N BN-800 GPS Module Support GPS GLONASS BeiDou For Pixhawk APM
- You will get the item about 7-12days If your order price over 10$ ,EUB is very quickly.
- Notice: Cable supports mini APM,if it is used for version 2.6 or 2.8,GPS of Pixhawk is needed to change the cable by yourself. It Can not use for flight control with SCM,but it is also suitable for Open source flight controller.
- Receiving Format:GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS Receiving Channel:72 Searching Channel Receiving Sensitivity:Trace -167dBm Capture-148dBm
- Search to more number of satellites and high positioning accuracy
- Any question please kindly contact us and we promise to work hard to help solve the problem.
Specially adapted to the needs to the highest availability and accuracy of high-performance applications,even if is in the GPS signal poor environment.
Equipped with a built-in intelligent automatic switching function.
With long Offline A-GNSS (GPS and GLONASS) function.
Support GPS + BeiDou
Can run simultaneously GPS + GLONASS or GPS +BeiDou
With GPS antenna
Low power consumption
Fast positioning speed
Search to more number of satellites and high positioning accuracy
Specifications:
Item Name:GPS Module
Model:BN-800
Gps Chip parameters:
Receiver type 72-channel u-blox M8 engine
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (NEO-M8N)
Nav. update rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position accuracy2 2.0 m CEP
Acquisition2 Cold starts: 26 s
Aided starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking & Nav: -167 dBm
Cold starts: -148 dBm
Hot starts: -156 dBm
Power Supply:DC Voltage 2.8V-6.0V,Typical: 3.3V or 5.0V
Consumption:Capture 50mA@5V
Positioning Time:Cold Start:avg26s
Warm Start:avg25s
Hot Start:avg3s
Level Positioning Precison: 2m At Open Wind
Speed Precison: 0.1 m/s (Without Aid)
Acceleration Precison: 0.1 m/s (Without Aid)
Dynamic Characteristics: Max Height:18000m
Size: 35 x 35 x 6mm/1.4 x 1.4 x 0.2 inch
Package Content:(without retail package)
1 x GPS Module
1 x sticker
1 x cable set Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on this site at the time of purchase will apply to the purchase of this product.
