Lynx - EOX Motor 2222-6S-1970KV

Lynx - EOX Motor 2222-6S-1970KV

Click Here !!

If you are seeking Top Rated RC Helicopters then now you are at the right online store.
Lynx - EOX Motor 2222-6S-1970KV is one of the Top Rated RC Helicopters at the market. This Top product prepares for you to please your wants.
Here, we give you one of Top Rated RC Helicopters.

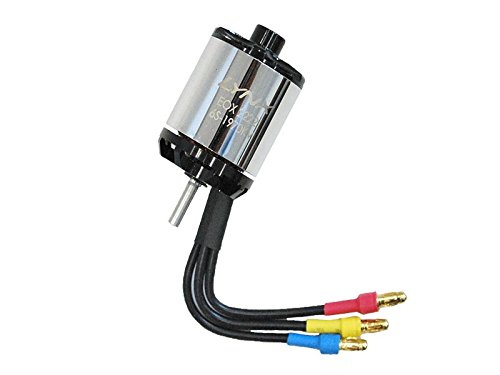

Lynx - EOX Motor 2222-6S-1970KV

TECHNICAL SPECIFICATION:
Motor Kv 1970KV
Max Lipo Cell 6s (22.2 MAX INPUT VOLT)
Stator Diameter 22 mm
Stator Length 22 mm
No. of Stator Arms 9
No. Magnet Poles 6
Single Wire Diam. 0.40 mm
Max Continuous Current 40A
Max Continuous Power 870W
Weight 81g - with wire and pin
Outside Diameter 28 mm
Body Length 30.3 mm
Shaft Diameter 4mm - 3 Bearign Support
Pinion Shaft Diameter 3,17 mm - With Lock Surface
Overall Shaft Length 55 mm
Motor Timing 5deg
Drive Frequency 8kHz
PACKING LIST:
1 x EOX 2222-6S-1970KV Motor with preinstalled conector plug
4 x Hex Cup Screw M3x5
4 x Hex Cup Screw M3x8
